What Is 8 kHz Monitoring? A Foundational Guide to High-Frequency Electrical Measurement

The choice of sampling rate is a choice about what physics you can observe. This sounds obvious, but the implications are worth working through carefully, because the most common monitoring architecture in data centers today is built around a sampling rate that makes an entire category of electrical phenomena invisible by construction.

What 1 Hz polling actually measures

Standard BMS systems poll electrical circuits at 1 Hz: one measurement per second. The measurement is typically an RMS value, computed by the meter's internal firmware from whatever internal sampling the meter performs, then reported as a single number over SNMP or Modbus.

On a 60 Hz power system, one second contains 60 complete electrical cycles. Each cycle is 16.67 ms. A 1 Hz polling system reports one aggregate value per 60 cycles. The waveform shape within each cycle, the relative amplitudes of harmonic components, the phase relationships between voltage and current harmonics, the cycle-to-cycle variation in any of these quantities: none of this information exists in the polled data. It is not noisy or imprecise. It is absent.

This is fine for the questions 1 Hz was designed to answer: how much power is this circuit drawing? Is the load balanced across phases? Is the breaker approaching its trip rating? These are aggregate questions about the fundamental frequency, and 1 Hz answers them adequately.

The question it cannot answer is: is the equipment on this circuit degrading?

Why degradation detection requires harmonic resolution

Electrical degradation manifests as changes in the frequency-domain content of the current waveform. The mechanism varies by equipment type, but the pattern is consistent: a component's impedance changes, which changes how it shapes the current it draws, which produces measurable shifts in specific harmonic amplitudes.

The Nyquist-Shannon sampling theorem sets a hard floor. To resolve a frequency component at f, you must sample at a minimum rate of 2f. Below this rate, the component either aliases (appears as a different, lower frequency) or vanishes entirely.

The diagnostically relevant harmonic content for data center equipment extends through approximately the 25th order:

Nyquist minimum to resolve the 25th harmonic: 2 x 1,500 = 3,000 Hz.

At 8 kHz (8,000 samples per second), we sample 133 points per 60 Hz cycle. The Nyquist limit is 4,000 Hz, corresponding to the 66th harmonic. This provides 2.67x margin above the minimum required to resolve the 25th order, which matters for practical reasons: anti-aliasing filter roll-off is not infinitely steep, and amplitude accuracy degrades near the Nyquist limit. The 2.67x margin keeps all diagnostically relevant harmonics well within the flat portion of the anti-aliasing filter's passband.

At 1 Hz, the Nyquist limit is 0.5 Hz. Every harmonic, from the 2nd order up, is unresolvable. Not attenuated. Not degraded. Nonexistent in the data.

For a concrete look at how this blind zone manifests in production, see how it shows up in GPU training power signatures: the same Nyquist physics, walked through against a real failure mode.

The information content at each resolution tier

Different sampling rates access different categories of physical phenomena. This is not a marketing claim. It is a consequence of the sampling theorem.

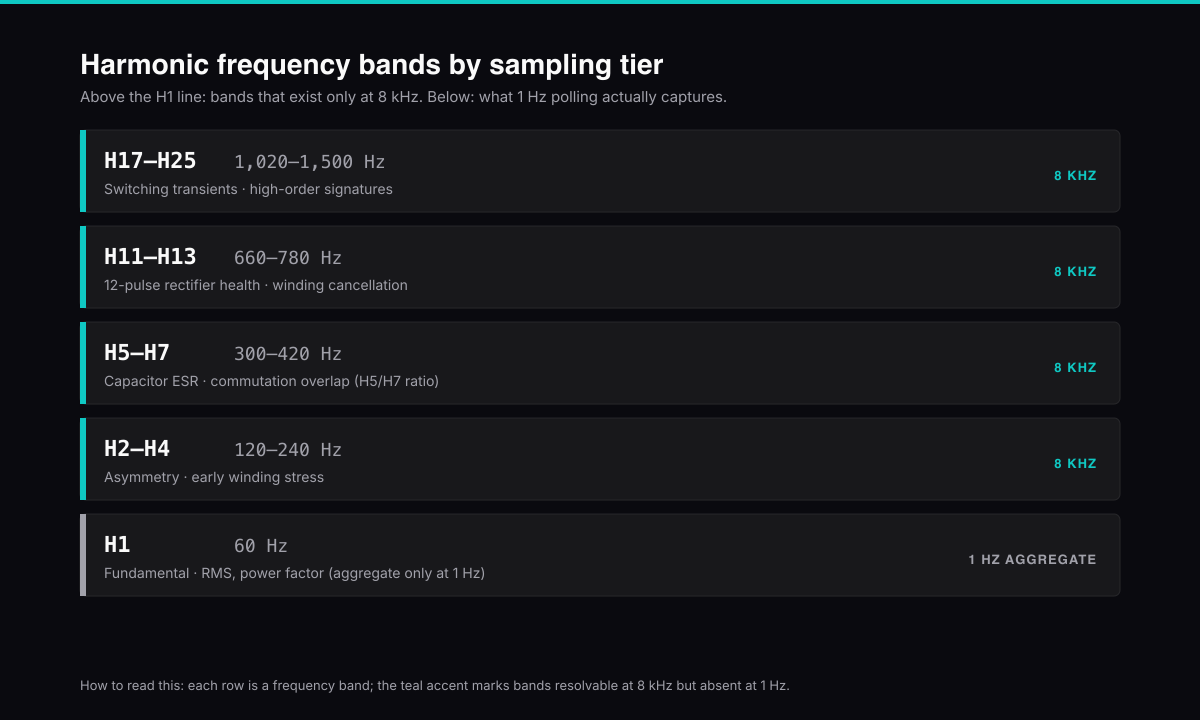

The bottom four rows represent the diagnostic bandwidth, the frequency range where equipment degradation produces its earliest measurable signatures. A UPS rectifier whose DC bus capacitors are aging produces a gradual shift in the 5th-to-7th harmonic ratio over weeks. A CRAC compressor motor developing bearing spalling produces current sidebands at the bearing defect frequency. A loose bus bar connection produces intermittent broadband energy bursts during thermal cycling.

All of these exist in the 120–4,000 Hz range. All of them are invisible at 1 Hz. Not because 1 Hz systems lack sensitivity, but because the sampling theorem makes these frequencies unreachable at that rate.

What 8 kHz measurement enables in practice

The value of waveform-level sampling is in what you can compute from the raw data.

Per-cycle harmonic decomposition. Each 16.67 ms cycle produces 133 samples, which yields a DFT with frequency resolution of 60 Hz (one bin per harmonic order). Computing this for every cycle, 60 times per second, produces a time series of harmonic amplitudes with 60 Hz temporal resolution. Degradation trends that unfold over days or weeks become clearly visible against the cycle-to-cycle noise floor.

Cycle-to-cycle variance. Healthy equipment produces a harmonic profile that is consistent from cycle to cycle, with variance driven primarily by load fluctuation. Degrading equipment produces increased cycle-to-cycle variance in specific harmonic orders before the mean value shifts detectably. Variance is often the earliest statistical indicator, preceding mean-shift detection by days to weeks.

Transient characterization. A voltage transient lasting 3 ms (less than one-fifth of a cycle) is fully captured at 8 kHz: 24 samples spanning the event, sufficient to determine the waveshape, peak magnitude, and likely origin. At 1 Hz, a 3 ms transient has a 0.3% probability of coinciding with the polling instant. Effectively zero.

Fleet-level statistical comparison. With harmonic time series from hundreds of identical units (say, 800 UPS rectifiers of the same model), you can compute fleet distributions for every spectral feature. The unit whose 7th harmonic is drifting toward the 97th percentile of the fleet distribution is statistically anomalous regardless of whether its absolute value exceeds any fixed threshold. This population-based approach catches slow degradation that unit-level threshold monitoring misses.

Field validation

At T-Mobile, we monitor 800+ UPS rectifiers continuously at 8 kHz. When we deployed, 4% of the fleet was already exhibiting harmonic signature changes consistent with capacitor degradation: elevated 5th and 7th order THD, H5/H7 ratio shifting, increased cycle-to-cycle variance at the 5th harmonic.

Zero BMS alarms had triggered on any of these units. The BMS was functioning correctly. At 1 Hz, it reported normal voltage, normal current, normal power factor. All true at the fundamental frequency. The degradation signatures existed exclusively in the harmonic content, which 1 Hz polling does not capture.

The advance warning window, from first detectable harmonic shift to performance-affecting degradation, was validated at 21 days for the units that subsequently required maintenance. This is not a theoretical projection. It is measured from actual time-series data on rectifiers that degraded and were inspected.

Why not higher than 8 kHz?

A reasonable question. If 8 kHz is better than 1 Hz, why not 50 kHz or 1 MHz?

There are two practical constraints and one diagnostic one.

Data volume. At 8 kHz per channel, a three-phase circuit with voltage and current produces 48,000 samples per second. Across hundreds of circuits, this is a substantial data stream. At 50 kHz, it is 6x larger. The edge compute required for real-time spectral analysis scales with sampling rate, and the cost-per-circuit increases accordingly.

Sensor cost. Higher sampling rates require wider-bandwidth current transformers and faster ADCs. Split-core CTs that perform well at 8 kHz are commodity components. CTs with flat response to 50 kHz cost 3–5× more and require more careful installation (lead dress, shielding).

Diagnostic diminishing returns. The well-characterized degradation signatures for data center equipment (capacitor aging, bearing wear, winding faults) produce spectral changes below 1,500 Hz. The 1,500–4,000 Hz range captured at 8 kHz adds transient characterization and high-order harmonic information. Above 4,000 Hz, the primary additional information is partial discharge detection in transformer insulation, which is diagnostically valuable but represents a single failure mode. The cost-per-circuit to capture it continuously does not yet justify the diagnostic return for most data center operators.

8 kHz is not optimal for every application. It is the point on the cost-resolution curve where the diagnostic return per dollar is highest for the equipment types in a typical data center. If partial discharge monitoring becomes a priority (as transformer ages increase in GPU-dense environments), the economic calculus may shift toward higher sampling rates.

Key takeaways

• Sampling rate is a choice about what physics you can observe. The Nyquist-Shannon theorem sets a hard floor: to resolve a frequency f, you must sample at a minimum of 2f.
• 1 Hz polling captures the fundamental as an aggregate. Every harmonic above the 1st is unresolvable, not noisy: nonexistent in the data.
• 8 kHz captures 133 points per 60 Hz cycle, resolving harmonics through ~4 kHz. This includes the H5/H7 ratio, H11/H13 cancellation health, and switching-transient signatures relevant to UPS rectifiers, transformers, and motor loads.
• The diagnostic return per dollar is highest at 8 kHz for typical data center equipment. Higher rates exist (50 kHz+) but are economically justified mainly for partial discharge monitoring in older transformer fleets.
• The T-Mobile deployment recorded 4% hidden degradation across 800+ UPS rectifiers, 21 days of advance warning, and zero standard alarms triggered [CS-001, EVD-001, EVD-003].
