    Forensic waveform capture for mission-critical environments

    Critical infrastructure cannot afford downtime. When an outage event occurs, you need detailed electrical data to determine the root cause.

    Verdigris EV2 Pro Power Quality Meter installed in a data center

    Traditional power quality analyzers require a technician to connect, capture a window of data, and disconnect. EV2 Pro captures raw waveforms continuously across every monitored circuit. When a sag, swell, or transient occurs, the data is already recorded, timestamped, and accessible via API.

    High-quality forensic data when you need it most

    When power events occur, EV2 Pro delivers the high-resolution data you need for root cause analysis.

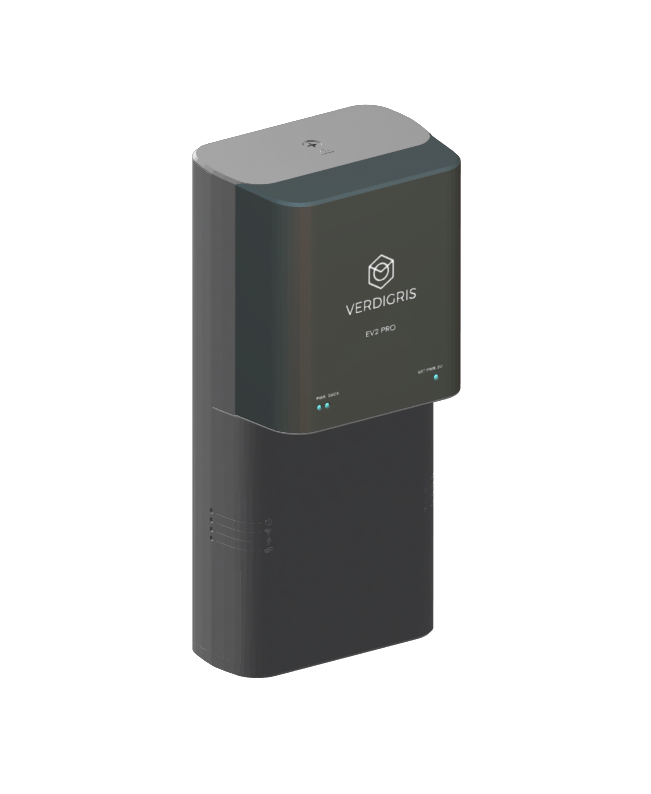

    EV2 Pro power quality meter capturing waveform data
    • Continuous power source provides over 30 seconds of direct power at the moment of a power loss event to the energy data gateway
    • Capture high fidelity waveforms before and after an event, timestamped to the exact moment of the power loss
    • Access and integrate data via the Sag/Swell Capture API

    Validated data accuracy

    Continuous algorithmic validation delivers high-quality data at scale

    Circuit-level granular data

    Detailed data down to the circuit level, sampled at 8 kHz

    Reliable, continuous power

    Capture 30 seconds of data before and after outage events

    We selected Verdigris as a modern alternative to legacy electrical metering systems with a focus on data and analytics. Within a few weeks we were able to get actionable visibility into cooling infrastructure performance.

    Innovation Manager at T-Mobile

    What EV2 Pro adds to the platform

    Standard EV2 meters capture steady-state waveforms at 8 kHz. EV2 Pro adds raw voltage and current waveform capture before, during, and after power events. This forensic data enables root cause analysis: when a breaker trips or a UPS transfers, you see exactly what happened at the electrical level.

    * Raw Voltage and Raw Current Waveform measurements require EV2 Pro hardware.

    See also: Verdigris EV2 for standard power monitoring without forensic waveform capture.

    Specifications

    Analog Inputs

    14 three-phase or 42 single-phase electrical circuits, 4 voltage measurement channels (100-480 Vac)

    Panel Types Supported

    Works with a range of electricity switchgears, switchboards, distribution panels, MCCs, and breaker boxes.

    Frequency

    50-60 Hz

    Current Measurement Range

    0.25 A - 15,000 A

    Connectivity

    LTE, WiFi, or Ethernet

    Storage

    Unlimited storage for continuous recording (minutely granularity)

    Warranty

    One year standard, extended options available

    Measurements

    • Energy (Wh)
    • Voltage (V)
    • Current (A)
    • Active Power (W)
    • Apparent Power (VA)
    • Reactive Power (VAr)
    • Power Factor
    • Steady State Voltage Waveform
    • Steady State Current Waveform
    • Raw Voltage Waveform*
    • Raw Current Waveform*
    • Total Harmonic Distortion
    • Local Temperature

    What mission-critical environments enables

    High-fidelity electrical data powers these capabilities:

    Protect your critical infrastructure today

    Capture the forensic data you need to prevent outages and diagnose failures fast. Available across Verdigris Cloud, Forge, and Sentinel SKUs; pricing varies by deployment size and configuration.
